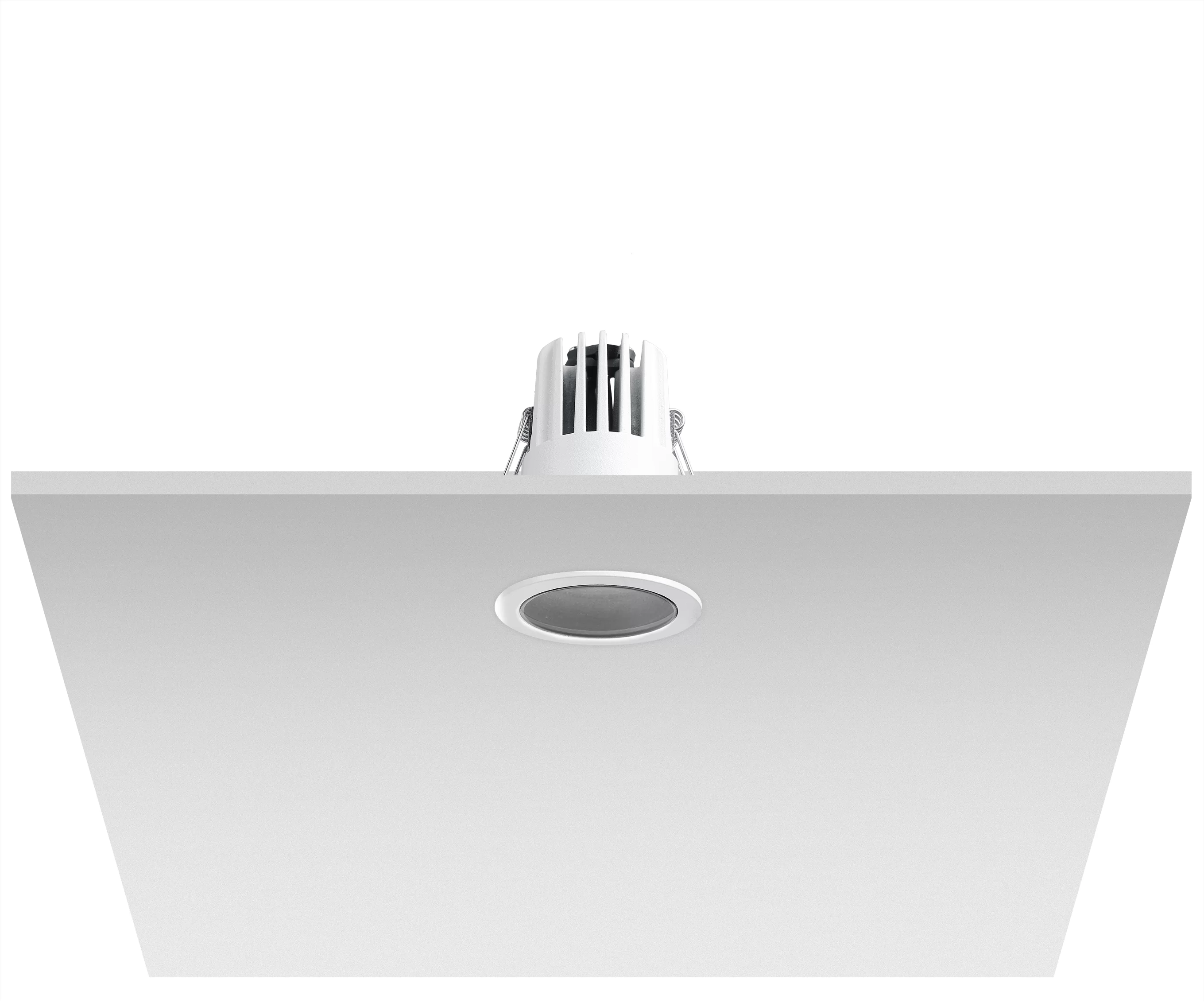

Architape ADL SR IP44 Downlight
The ADL SR IP44 Downlight provides moisture resistant performance in a shallow profile luminaire, making it suitable for bathrooms, kitchens, utility areas, and sheltered outdoor applications. It retains the range’s hallmark low glare illumination and efficient light output, ensuring consistent quality even in spaces with environmental constraints. Its compact housing makes it especially practical where ceiling depth is limited.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Optics
Premium optical assemblies with ultra-low glare (UGR<19) design, providing clean beam definitions and superior visual comfort for high-end applications.
Architectural Integration
Engineered for a seamless, trimless appearance that visually disappears into the ceiling plane while delivering powerful illumination.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape ADL SR IP44 Downlight.
| Feature | Specification |
|---|---|
| Wattage Range | 9 - 12 W |
| Luminous Flux | 527 - 1037 lm |
| Efficacy | 63 - 93 lm/W |
| IP Rating | IP20 |
| Colour Rendering | CRI 80+, CRI 90+ |
| Optics | R20, R40, R55 |
| Housing | Aluminium Base |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
