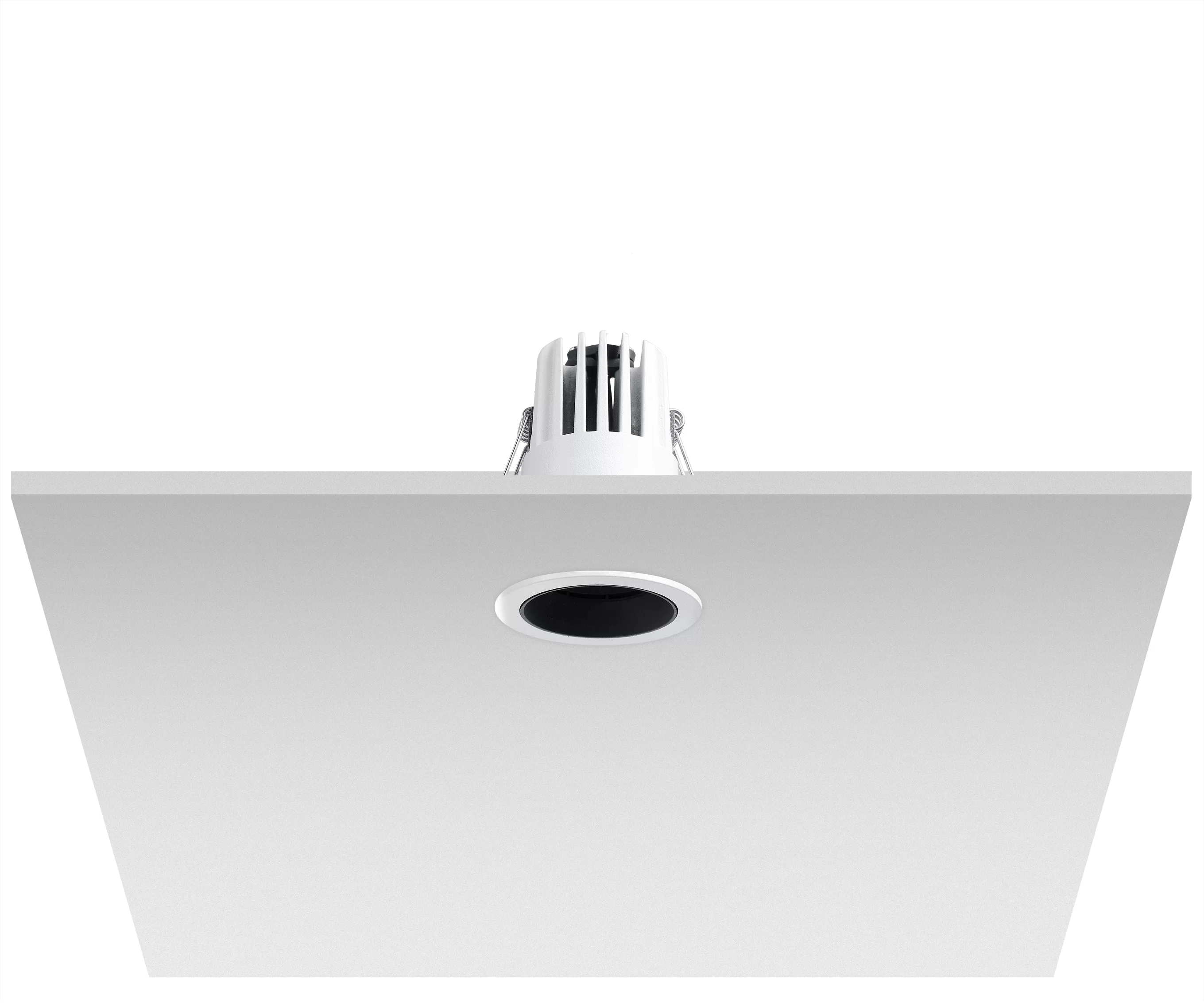

Architape ADL SR Downlight
ADL SR is a compact recessed downlight engineered for efficient, uniform illumination in contemporary architectural environments. Its shallow housing makes it particularly suitable for projects with limited ceiling void space, while maintaining strong light quality and low glare performance. With durable construction, multiple control interfaces, and IP rated variants, ADL SR is well suited for offices, residential developments, retail interiors, and light commercial projects where practicality and performance must go hand in hand. Emergency lighting capable with the addition of an optional battery kit.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Optics
Premium optical assemblies with ultra-low glare (UGR<19) design, providing clean beam definitions and superior visual comfort for high-end applications.
Architectural Integration
Engineered for a seamless, trimless appearance that visually disappears into the ceiling plane while delivering powerful illumination.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape ADL SR Downlight.
| Feature | Specification |
|---|---|
| Wattage Range | 9 - 12 W |
| Luminous Flux | 653 - 1273 lm |
| Efficacy | 70 - 103 lm/W |
| IP Rating | IP20 |
| Colour Rendering | CRI 80+, CRI 90+ |
| Optics | R20, R40, R55 |
| Housing | Aluminium Base |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
