Downlights

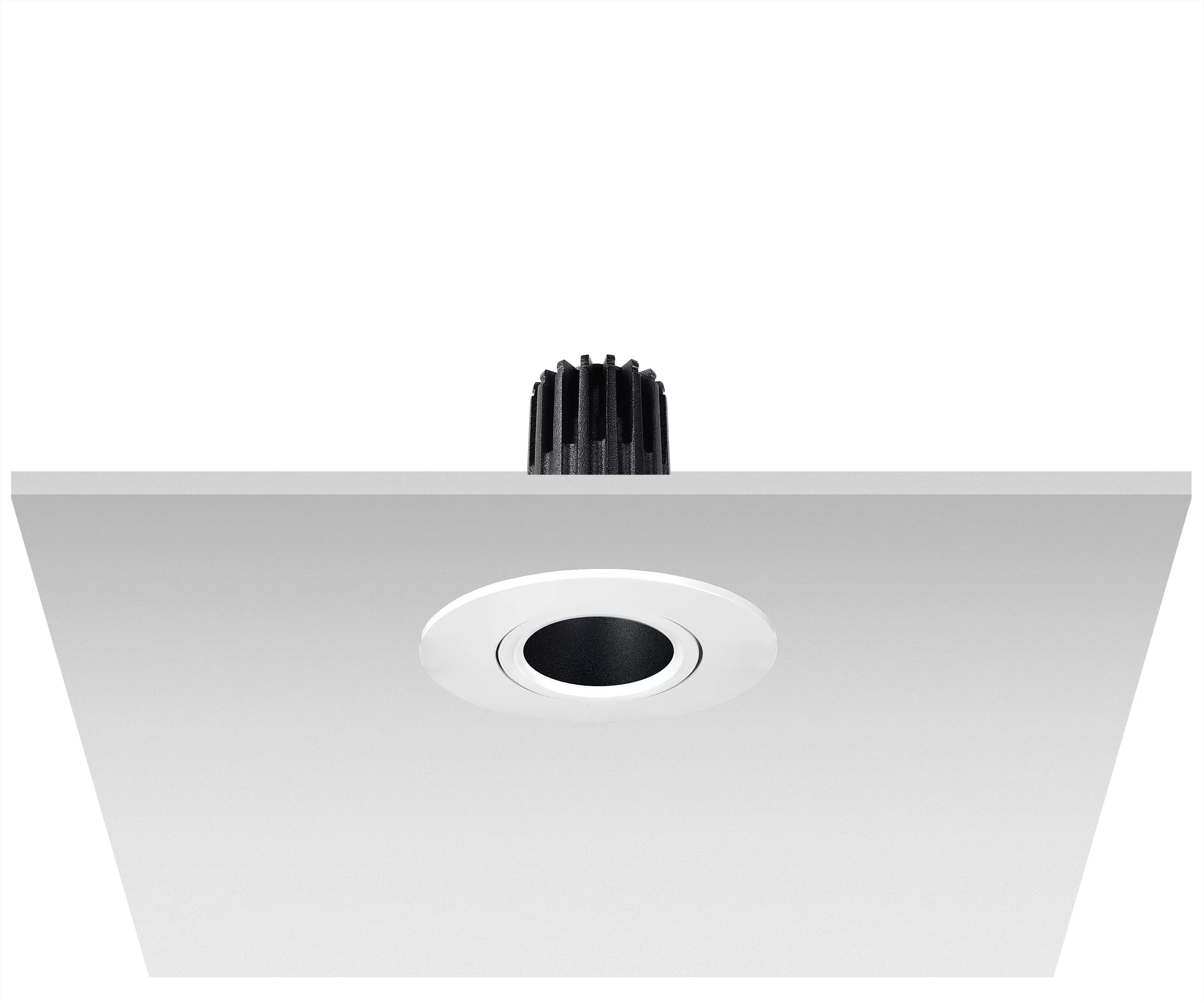

Architape ADL C Tilt Downlight
The Architape ADL C Tilt Downlight is a premium architectural solution offering exceptional visual comfort and precision control.
Designed for high-end residential and commercial applications, it combines sleek aesthetics with superior technical performance.
Available Colour Temperatures
2700K
3000K
3500K
4000K
CCT options range from 2700K to 4000K
Performance at a Glance
High-fidelity metrics for professional specification.
Power Options
9 - 13 W
Luminous Flux
488 - 1449 lm
IP Rating
IP20
Colour Rendering
CRI 80+, CRI 90+
Optical Options
L20, L30, L50
Housing Colour
Multiple Finishes
Adjustment
±30° Adjustable
Precision Engineering
Precision Optics
Premium optical assemblies with ultra-low glare (UGR<19) design, providing clean beam definitions and superior visual comfort for high-end applications.
360° Rotational Flexibility
Engineered with a highly durable multi-axis adjustment mechanism, allowing precise focal alignment without light leak.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape ADL C Tilt Downlight.
| Feature | Specification |
|---|---|
| Wattage Range | 9 - 13 W |
| Luminous Flux | 488 - 1449 lm |
| Efficacy | 57 - 121 lm/W |
| IP Rating | IP20 |
| Colour Rendering | CRI 80+, CRI 90+ |
| Optics | L20, L30, L50 |
| Housing | Aluminium Base |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
