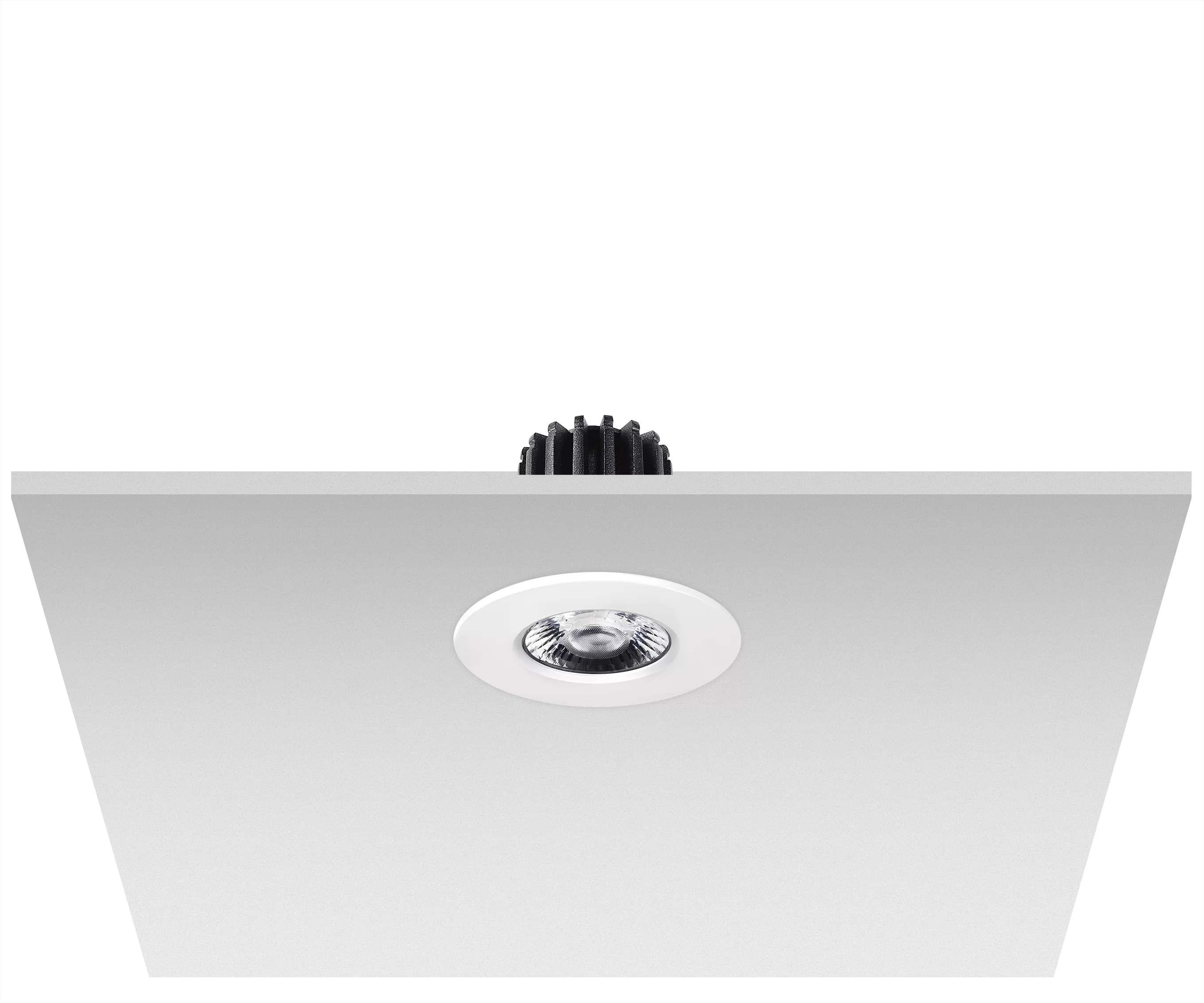

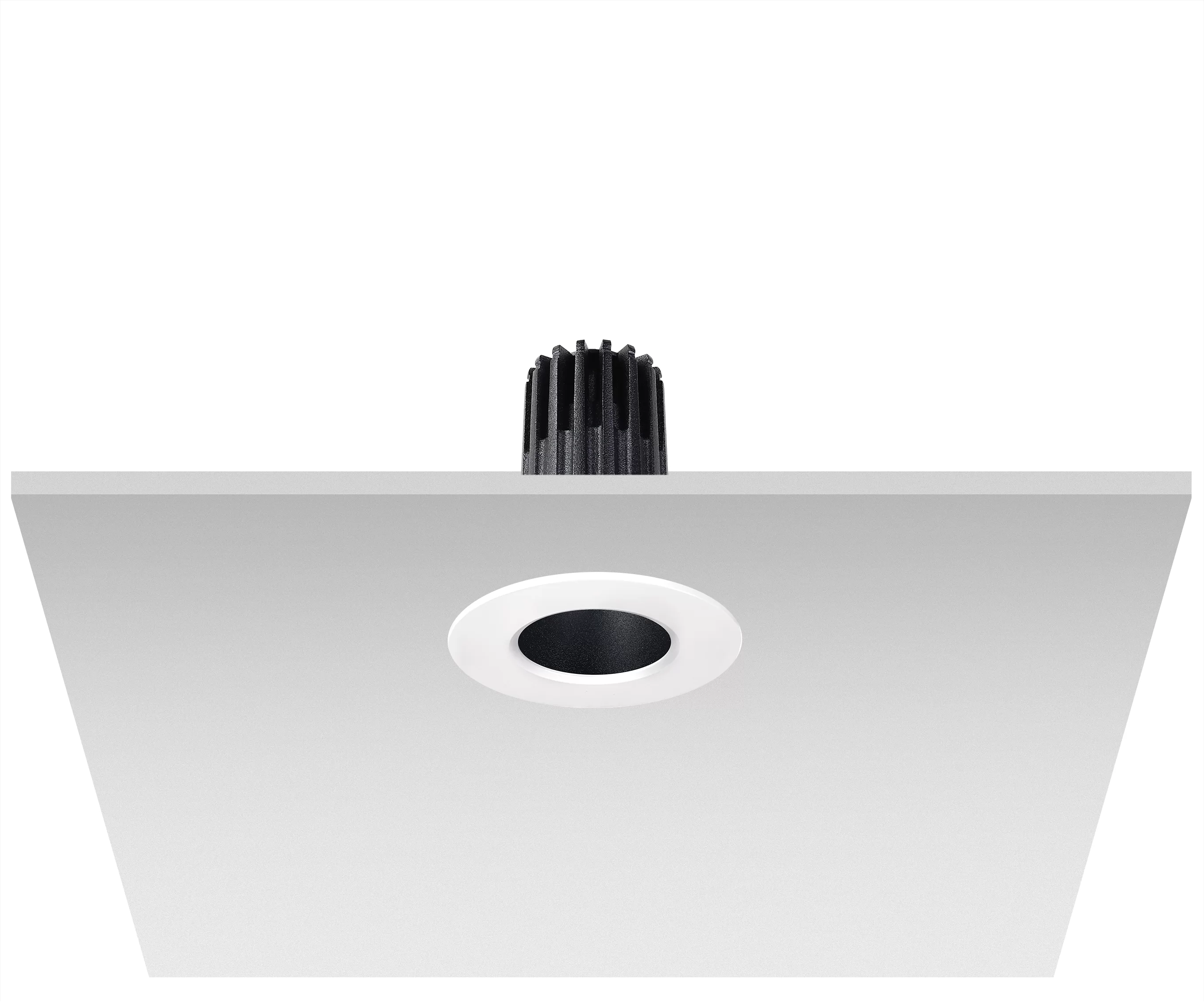

Architape ADL C Downlight
ADL C is a versatile recessed downlight designed to deliver clean, comfortable illumination with excellent low glare performance. Its compact form and high efficiency optics make it ideal for general lighting in offices, retail spaces, hospitality interiors, and circulation areas. With multiple control options, colour temperatures, and beam angles, ADL C provides designers with a flexible, reliable platform for creating consistent, high quality lighting across a wide range of architectural applications. Emergency lighting capable with the addition of an optional battery kit.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Optics
Premium optical assemblies with ultra-low glare (UGR<19) design, providing clean beam definitions and superior visual comfort for high-end applications.
Architectural Integration
Engineered for a seamless, trimless appearance that visually disappears into the ceiling plane while delivering powerful illumination.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape ADL C Downlight.
| Feature | Specification |
|---|---|
| Wattage Range | 9 - 13 W |
| Luminous Flux | 488 - 1449 lm |
| Efficacy | 57 - 121 lm/W |
| IP Rating | IP20 |
| Colour Rendering | CRI 80+, CRI 90+ |
| Optics | L20, L30, L50 |
| Housing | Aluminium Base |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
