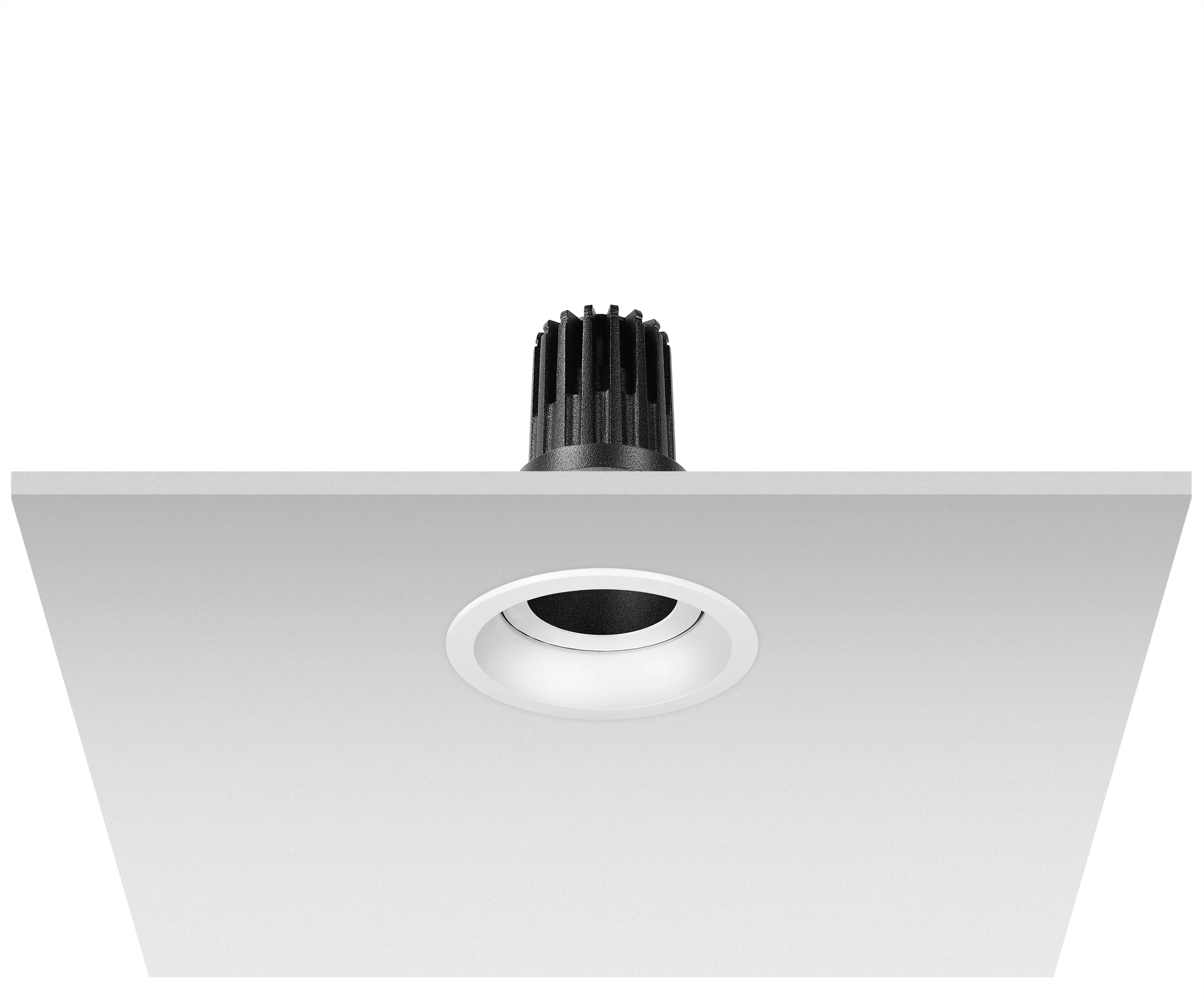

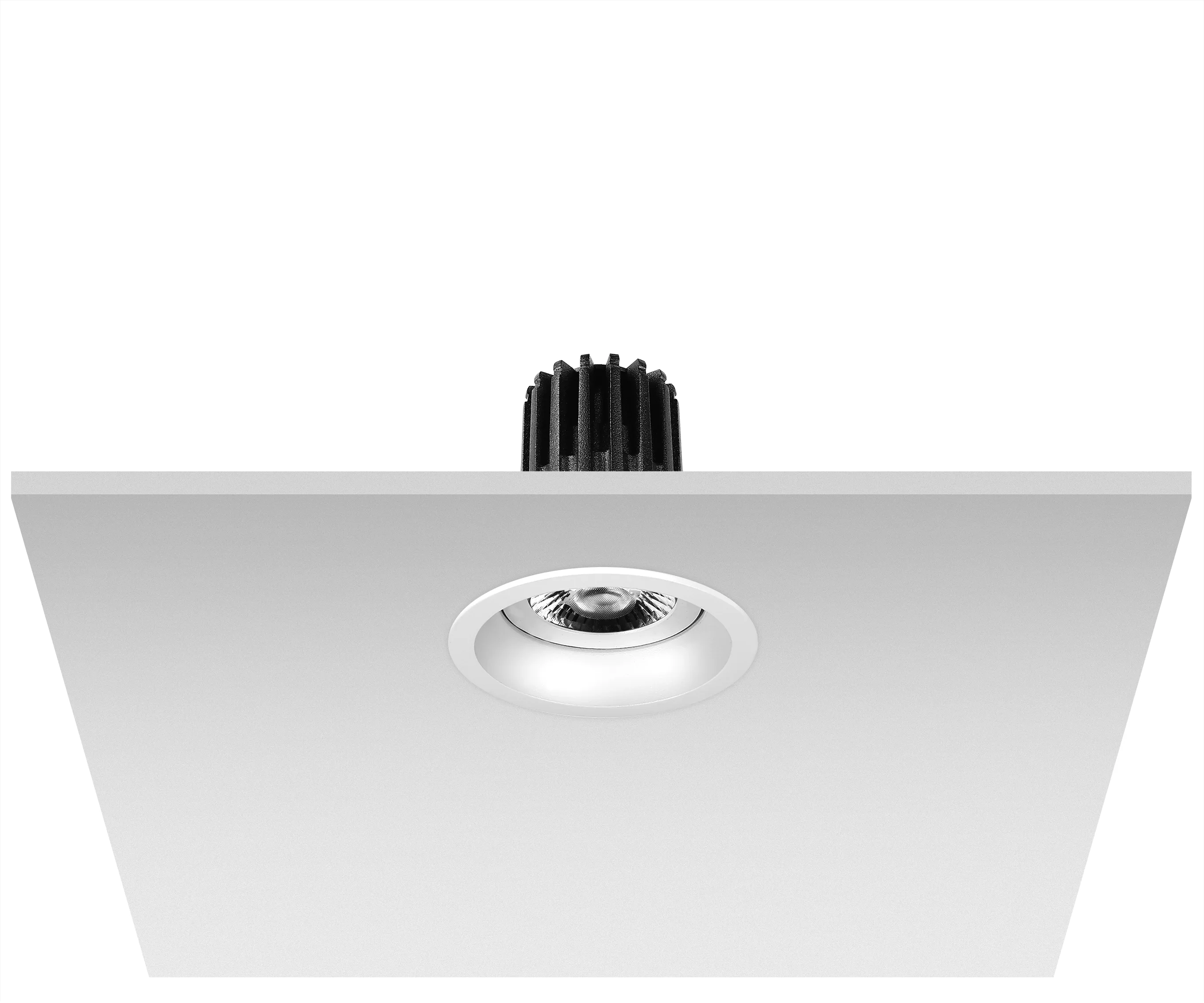

Architape ADL C Deep Tilt Downlight
The ADL C Deep Tilt offers the same sophisticated visual comfort as the standard ADL-C Deep version while adding a 30° adjustable mechanism for fine tuned beam placement. This makes it a strong choice for angled ceilings or for drawing attention to architectural textures, artworks, or feature zones. Its recessed design preserves a soft, unobtrusive appearance while enabling highly targeted, glare controlled illumination.
Available Colour Temperatures
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Optics
Premium optical assemblies with ultra-low glare (UGR<19) design, providing clean beam definitions and superior visual comfort for high-end applications.
360° Rotational Flexibility
Engineered with a highly durable multi-axis adjustment mechanism, allowing precise focal alignment without light leak.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape ADL C Deep Tilt Downlight.
| Feature | Specification |
|---|---|
| Wattage Range | 9 - 13 W |
| Luminous Flux | 488 - 1449 lm |
| Efficacy | 57 - 121 lm/W |
| IP Rating | IP20 |
| Colour Rendering | CRI 80+, CRI 90+ |
| Optics | L20, L30, L50 |
| Housing | Aluminium Base |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
