Architape ADL C Deep Downlight

ADL C Deep enhances visual comfort with its recessed light source and advanced low glare design, making it perfect for environments where a more refined, discreet appearance is required. The deeper optical chamber creates softer cut off angles and minimises visual brightness, supporting high end commercial, residential, and leisure settings. It combines premium components, stable thermal performance, and flexible configuration options to achieve elegant, comfortable illumination in visually sensitive spaces. Emergency lighting capable with the addition of an optional battery kit.

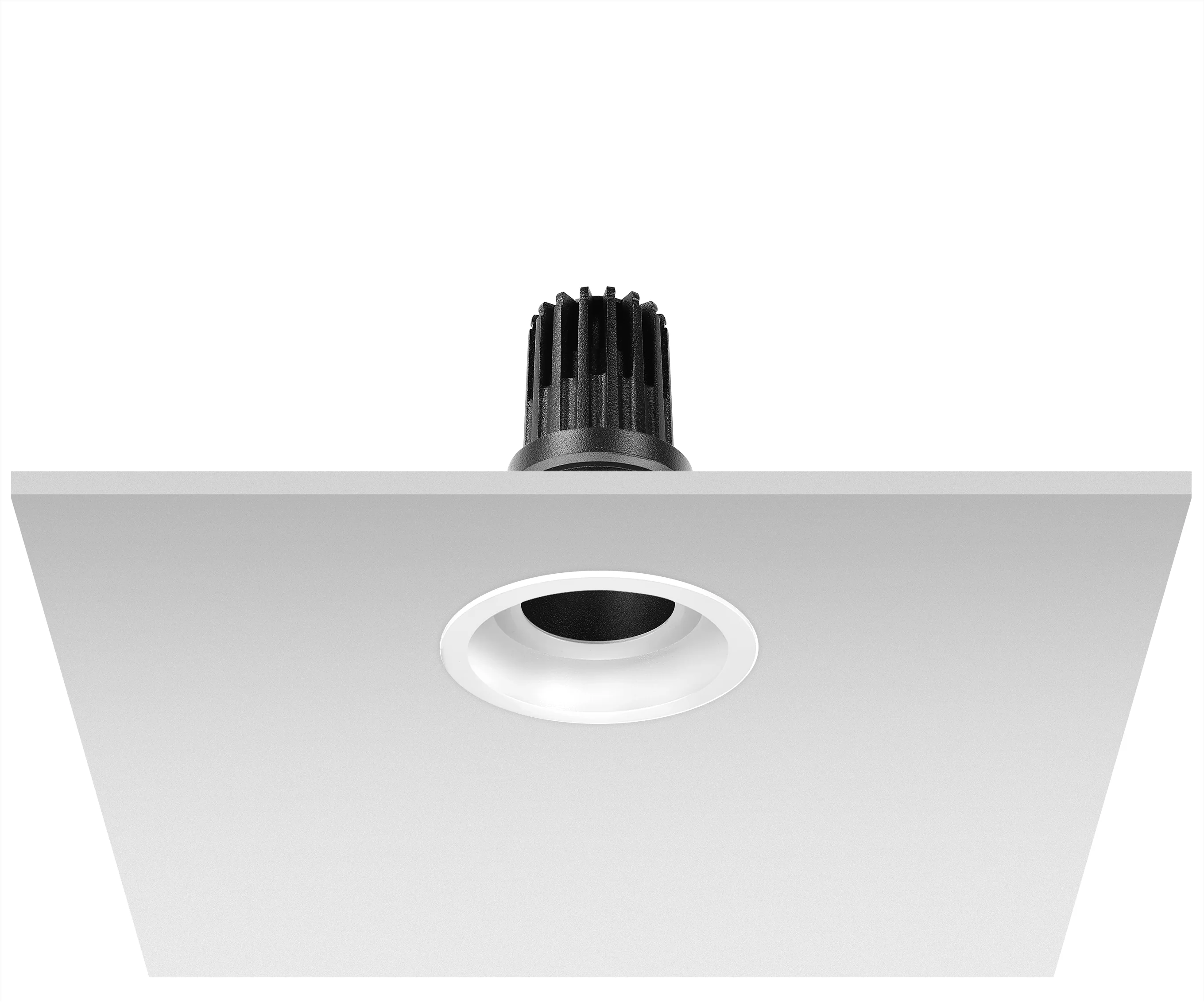

Architape ADL C Deep Downlight

Available Colour Temperatures

2700K
3000K
3500K
4000K
CCT options range from 2700K to 4000K

Performance at a Glance

High-fidelity metrics for professional specification.

Power Options
9 - 13 W
Luminous Flux
488 - 1449 lm
IP Rating
IP20
Colour Rendering
CRI 80+, CRI 90+
Optical Options
L20, L30, L50
Housing Colour
Multiple Finishes
Adjustment
Fixed Precision

Precision Engineering

Precision Optics

Premium optical assemblies with ultra-low glare (UGR<19) design, providing clean beam definitions and superior visual comfort for high-end applications.

Architectural Integration

Engineered for a seamless, trimless appearance that visually disappears into the ceiling plane while delivering powerful illumination.

Technical Overview

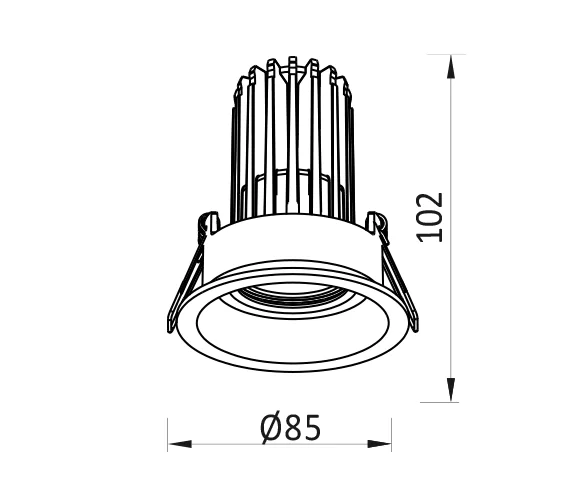

Architape ADL C Deep Downlight Technical Dimensions and Engineering Schematic

Full Technical Specification

Comprehensive performance data for Architape ADL C Deep Downlight.

Feature Specification
Wattage Range9 - 13 W
Luminous Flux488 - 1449 lm
Efficacy57 - 121 lm/W
IP RatingIP20
Colour RenderingCRI 80+, CRI 90+
OpticsL20, L30, L50
HousingAluminium Base
Warranty5 Years Professional Warranty

Start Your Specification

Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
