Indoor Luminaire
Architape A025 Indoor Luminaire
A round fixture for suspended linear lights, perfect for decorative, task and accent lighting applications. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.
Available Colour Temperatures
Red
RGB_
Blue
Green
1800K
2000K
2200K
2500K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
CCT options range from Red to 6500K
Performance at a Glance
High-fidelity metrics for professional specification.
Power Options
1.2 - 24 W
Luminous Flux
31 - 3717 lm
Max Efficacy
25 - 160 lm/W
IP Rating
IP20
Colour Fidelity
CRI90, CRI95, Colour, Optisolis, RGB_

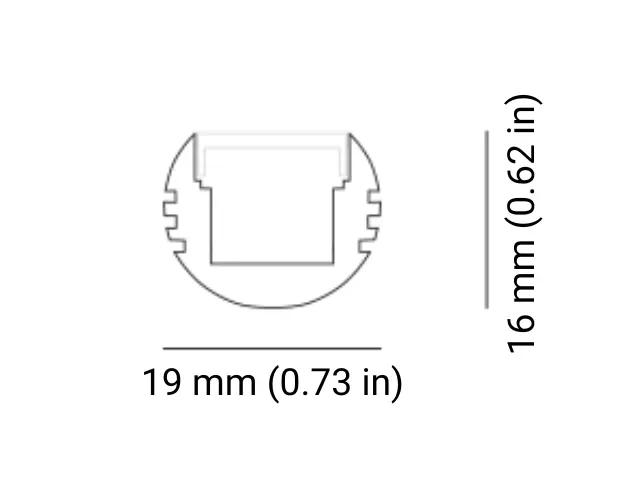

Dimensions
18.5x15.8 mm
Cutting Step
40 - 125 mm
Max Run Length
1 - 28.5 m
Precision Engineering
Precision Form Factor
The Architape A025 Indoor Luminaire series is engineered for seamless architectural integration, providing superior heat dissipation for high-power LED engines.
Optimised Output
Advanced cover compatibility ensuring a perfect balance between raw output and smooth, dot-free illumination regardless of environment.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape A025 Indoor Luminaire.
| Feature | Specification |
|---|---|
| Wattage Range | 1.2 - 24 W |
| Luminous Flux | 31 - 3717 lm |
| Efficacy | 25 - 160 lm/W |
| IP Rating | IP20 |
| Colour Fidelity | CRI90, CRI95, Colour, Optisolis, RGB_ |
| Dimensions | 18.5x15.8 mm |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
