A018N Indoor Luminaire
A surface-mount fixture for direct lighting applications, where homogenous lighting is a must. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.
Performance at a Glance
High-fidelity metrics for professional specification.
Precision Engineering
Precision Form Factor
The A018N series is engineered for seamless architectural integration, providing superior heat dissipation for high-power LED engines.
Reliability & Longevity
Designed for professional environments, providing a secure housing that protects the internal light engine from dust and mechanical impact.
Optimized Optics
Advanced cover compatibility ensuring a perfect balance between raw output and smooth, dot-free illumination.

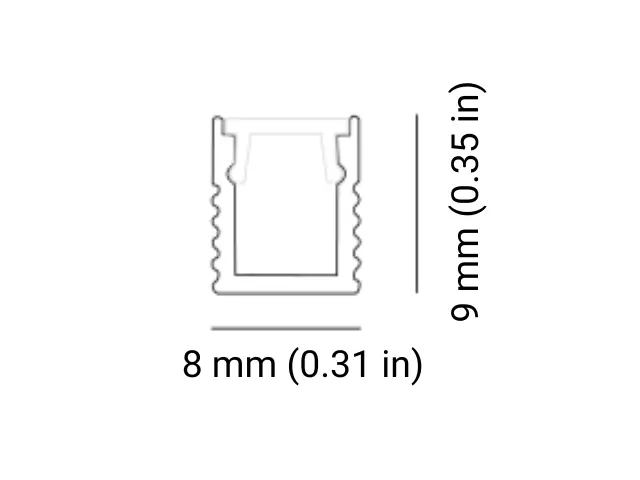

Technical Drawing
Configuration: 8mm (W) x 9mm (H)
Full Technical Specification
Comprehensive performance data for the A018N series.
| Key Feature | Value / Specification |
|---|---|
| Wattage Range | 1.2 - 9.6 W/m |
| Luminous Flux | 31 - 1533 lm/m |
| Efficacy | 26 - 160 lm/W |
| Voltage | 24 - 48V DC |
| CCT Options | Green, Blue, Red, 1800K, 2000K, 2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K |
| CRI Options | Colour - CRI95 |
| Max Run Length | - |
| Cutting Step | 40 - 125 mm |
| Dimensions | 8mm (W) x 9mm (H) |
| IP Rating | - |
| LED Lifetime | - |
| Operating Temp | -25°C...+50°C ( -13°F...122°F ) °C |
| Mounting | Integrated / Surface Mount |
| Material | Anodized Aluminium |
| Warranty | 5 Years Professional Warranty |
Lighting Fidelity
The A018N is compatible with our full range of professional LED tapes, ensuring consistent color reproduction and perfectly controlled beam angles.
- IES & LDT files available for all configurations
- Consistent SDCM (<3 step) binning
- Specialized spectra available (Optisolis, RGBW)
Start Your Specification
Our A018N series is ready for your next award-winning project. Explore the full range in our configuration tool or speak with a specialist today.
