Indoor Luminaire
Architape A017M Indoor Luminaire
A surface-mount fixture for direct lighting applications, where homogenous lighting is a must. Made from lightweight aluminium, it is designed for long-term indoor professional lighting applications.
Available Colour Temperatures
Red
RGB_
Blue
Green
1800K
2000K
2200K
2500K
2700K
3000K
3500K
4000K
5000K
5700K
6500K
CCT options range from Red to 6500K
Performance at a Glance
High-fidelity metrics for professional specification.
Power Options
1.2 - 33.6 W
Luminous Flux
31 - 5119 lm
Max Efficacy
25 - 160 lm/W
IP Rating
IP20
Colour Fidelity
CRI90, CRI95, Colour, Optisolis, RGB_

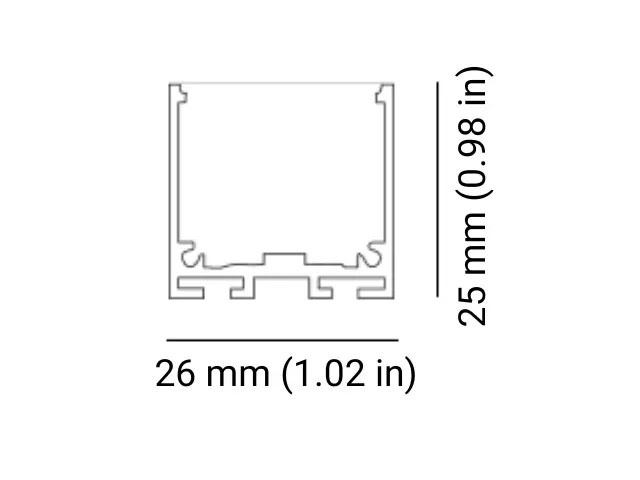

Dimensions
26x25 mm
Cutting Step
40 - 125 mm
Max Run Length
1 - 28.5 m
Precision Engineering
Precision Form Factor
The Architape A017M Indoor Luminaire series is engineered for seamless architectural integration, providing superior heat dissipation for high-power LED engines.
Optimised Output
Advanced cover compatibility ensuring a perfect balance between raw output and smooth, dot-free illumination regardless of environment.
Technical Overview
Full Technical Specification
Comprehensive performance data for Architape A017M Indoor Luminaire.
| Feature | Specification |
|---|---|
| Wattage Range | 1.2 - 33.6 W |
| Luminous Flux | 31 - 5119 lm |
| Efficacy | 25 - 160 lm/W |
| IP Rating | IP20 |
| Colour Fidelity | CRI90, CRI95, Colour, Optisolis, RGB_ |
| Dimensions | 26x25 mm |
| Warranty | 5 Years Professional Warranty |
Start Your Specification
Access the full range of photometrics, BIM files, and data sheets in our configuration tool.
